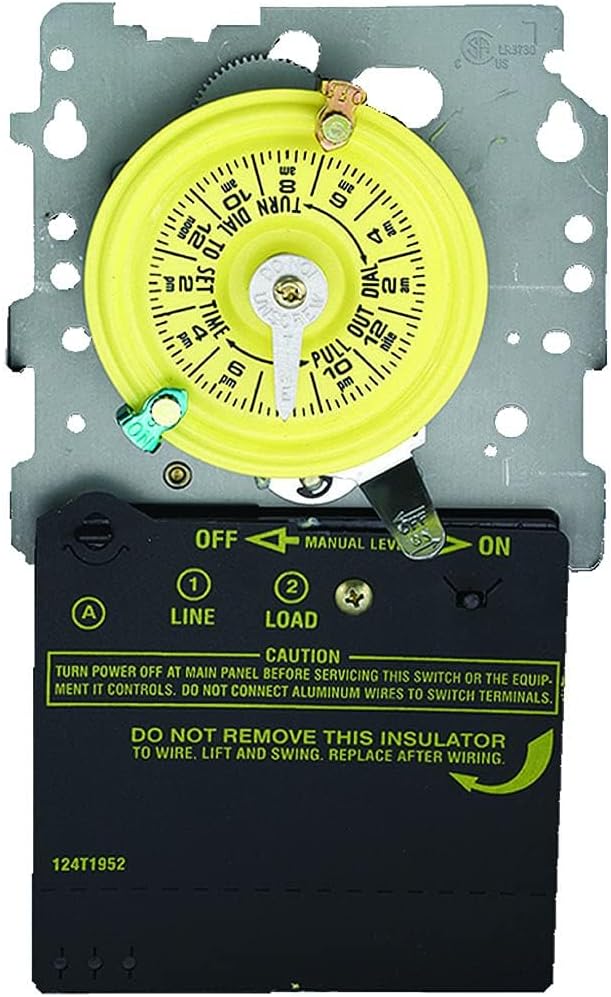

Intermatic T101M – 24-Hour SPST Mechanical Time Switch Mechanism (120V) Reliable single-load control with daily scheduling

The Intermatic T101M is a 24-hour mechanical time switch mechanism, perfect for controlling a single electrical load in pool pumps, lighting, water heaters, or similar systems. Operating at 120 volts, it handles loads up to 40 amps, offering strong performance and reliability.

This mechanism supports up to 12 ON/OFF operations per day and includes a manual override switch for greater flexibility. It also features teeter-type terminals, which simplify the process of making multiple load connections.

Key Features:

• 24-hour mechanical time switch mechanism

• Voltage: 120V

• SPST (Single Pole, Single Throw)

• Rated for up to 40 A

• Up to 12 ON/OFF cycles per day

• Includes 1 ON and 1 OFF tripper

• Teeter-type terminals for easy multiple connections

• Manual override switch for added convenience

• Pool heater protection available (optional)

Perfect for residential or light commercial applications where dependable, repeatable time control is required.
